CETONI系统的核心

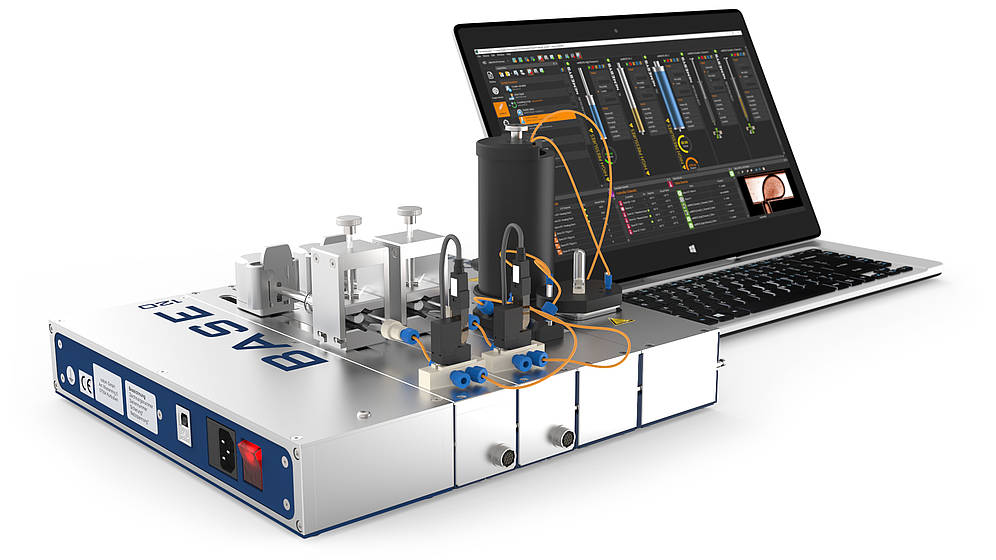

基础模块是Qmix微反应和流动化学系统的核心,它包含控制器PC的接口(包括QmixElements软件),并为连接的模块供电。使用集成的USB接口,BASE120可以很容易地连接到任何PC。创新的插头系统可让您将其他Qmix模块连接到基本型号,无需电缆或安装工作。

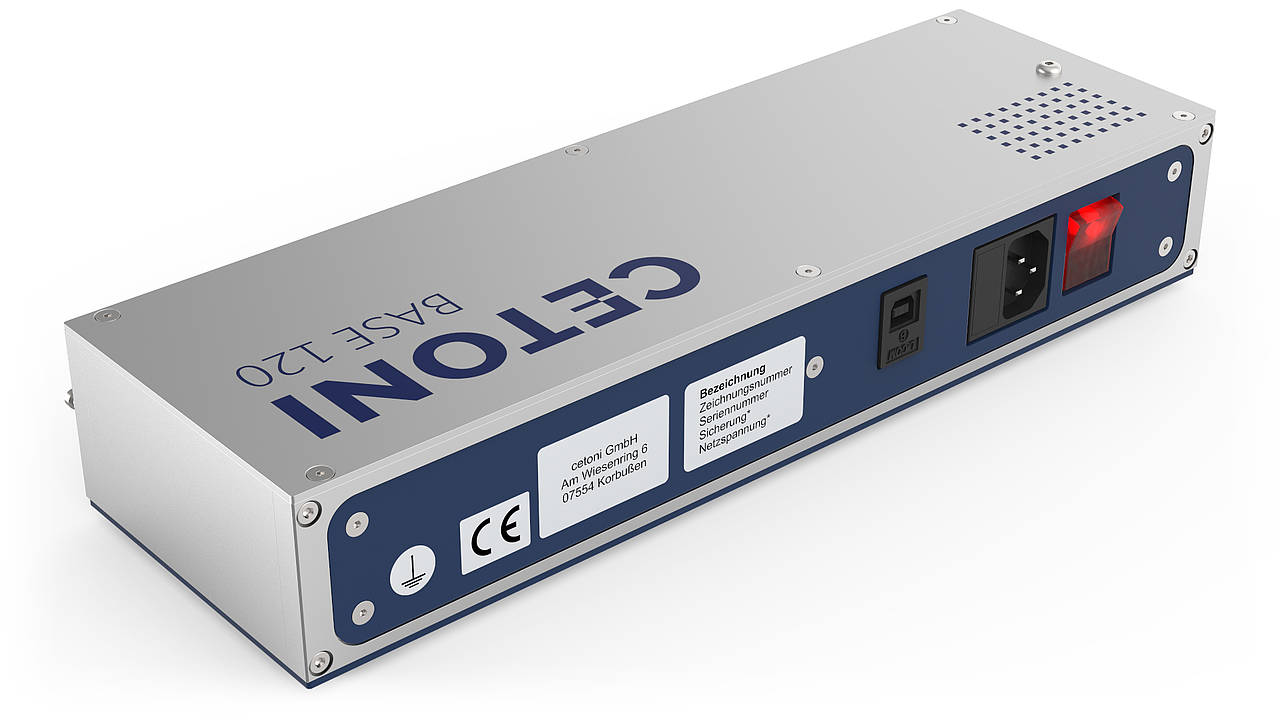

BASE120 – 紧凑的解决方案
——占地面积小
— 适用于少量模块
—功率输出为120瓦
规格参数
Number of Supported Modules (Examples)
NEMESYS Low Pressure | 8 |
NEMESYS Mid Pressure | 5 |
NEMESYS High Pressure | 2 |

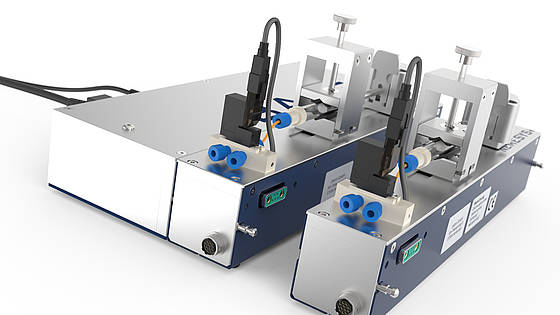

Connection to Supported Modules
NEMESYS Low / Mid / High Pressure | direct / IC cable |
QMIX, NEMIX | direct / IC cable |
NEMESYS UltraHigh Pressure, AXYS, PERISYS, etc | IC cable |
Environmental Conditions
Temperature (Operating / Storage) | 0 - 50°C / -20 - 75°C |
Humidity (Operating, Storage) | 20 – 80%, noncondensing |
Mechanical Data
Weight | 1,8 kg |
Dimensions (L x W x H) | 310 x 100 x 56 mm |
Electrical Data
Power Supply Voltage | 90 - 264 V AC |
Power Supply Frequency | 47 - 63 Hz |
Power Output | 120 W |
Interfaces
CAN out (Mixed DSub socket) | max. 1 Mbit/s |
USB (USB Type B socket) | 2.0 |
